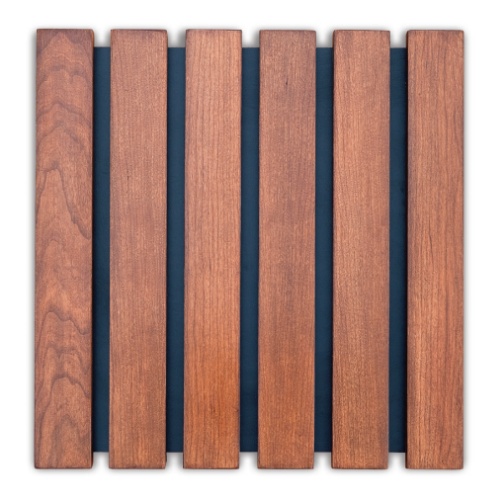

Linear and Tongue and Groove Acoustical Wood

Choose from over 200 attractive veneers or PS White Ash on firerated MDF, available in a variety of stain options. Solid Poplar is also offered in multiple stains, ensuring you find the right match for your design vision.

Fire Rating

Class A fire rating – veneer on fire-rated MDF

Acoustical Performance

Excellent sound absorption with acoustical infill panel (NRC 0.85)**
**When using 2" foam acoustical backer supplied by others

Other Features

Panelized system
Access panels available
Custom lengths available
Available in solids

LEED Information

No added urea formaldehyde resins
FSC®-certified options available
California Air Resources Board (CARB) compliant
100% Pre-consumer Recycled Wood Fiber Content Third-party Certification
Environmentally Preferable Product (EPP) Grademark Program CPA 2-06
Scientific Certification Systems (SCS) Third-party Certification 100 percent pre-consumer recycled fiber
May contribute to LEED Recycled Content Credits MR 4.1 and MR 4.2

Specifications:

Density: 47 pounds per cubic foot
Modulus of Rupture: 4,500 psi
Modulus of Elasticity: 550,000 psi
Internal Bond: 140 psi
Hardness: 955 pounds
Screw Holding:
- Face: 230 pounds
- Edge: 185 pounds
Linear Expansion, Maximum Average: 0.35 percent
Thickness Swell, 24-Hour Soak: 6 percent
Finished with water-based zero VOC Matt 20 finish

Standard Options

BLADE SIZES DETAIL
ISOMETRIC-VIEW
SIDE-ELEVATION
FRONT-ELEVATION-SIDE-VIEW

Sizing

Linear ships in ready to install panels
Typical blade widths: 2-1/4”, 3-1/4”, 5-1/4”
Typical blade heights: ¾”
Typical spacing between blades: ½”, ¾”
Custom lengths available
Available in solids

Downloads:

Specs & Literature

Information & Testing

CAD Files

Drawings

Finishes

Gallery

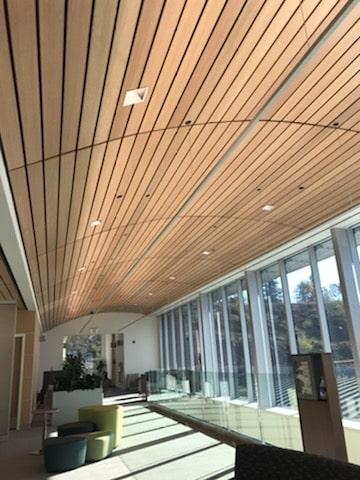

Curved Ceiling
Madrid’s Linear Wood at a Vancouver, B.C., clinic

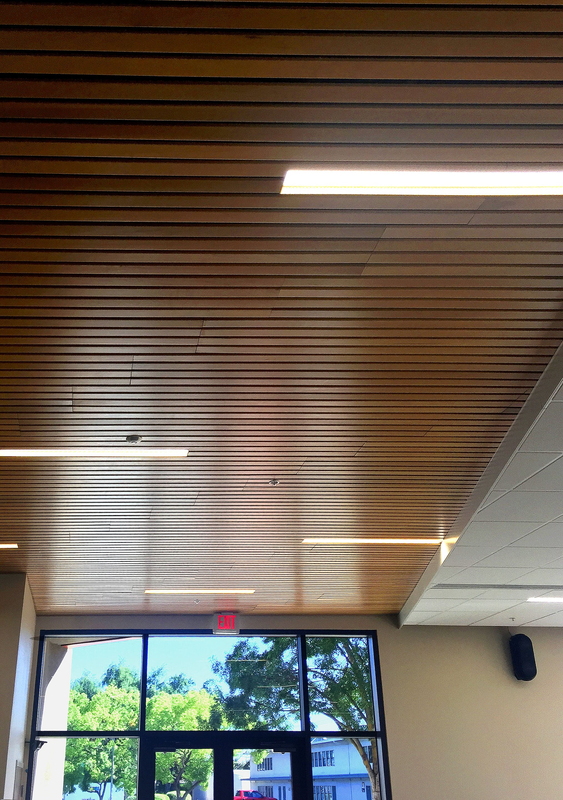

Apple Offices
A Linear Wood Ceiling with lighting

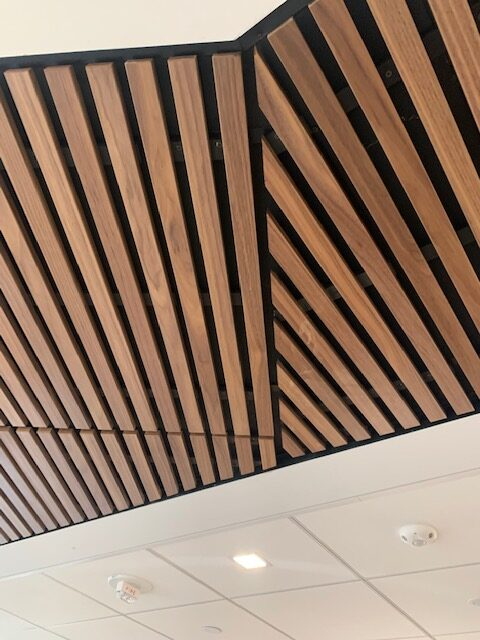

Unique Ceiling Treatment
A Bank of America ceiling in Century City, CA

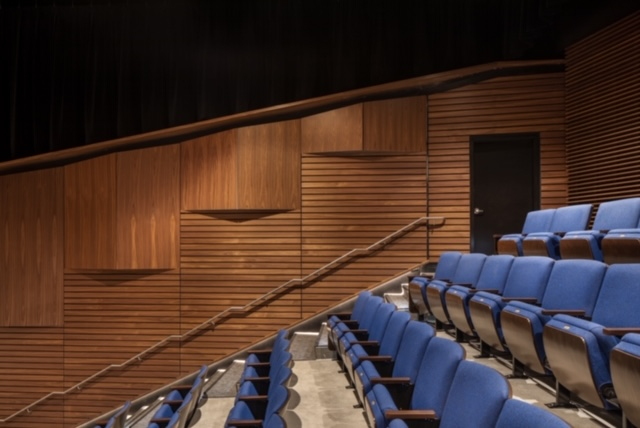

Northern Arizona University
Linear Wood on the walls of a recital hall

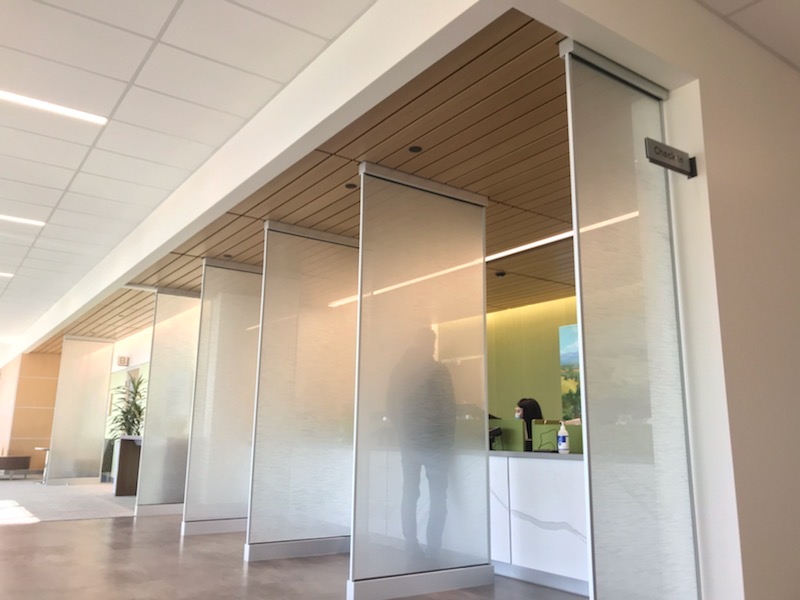

Linear Wood with Panels
A Vancouver, B.C., clinic ceiling

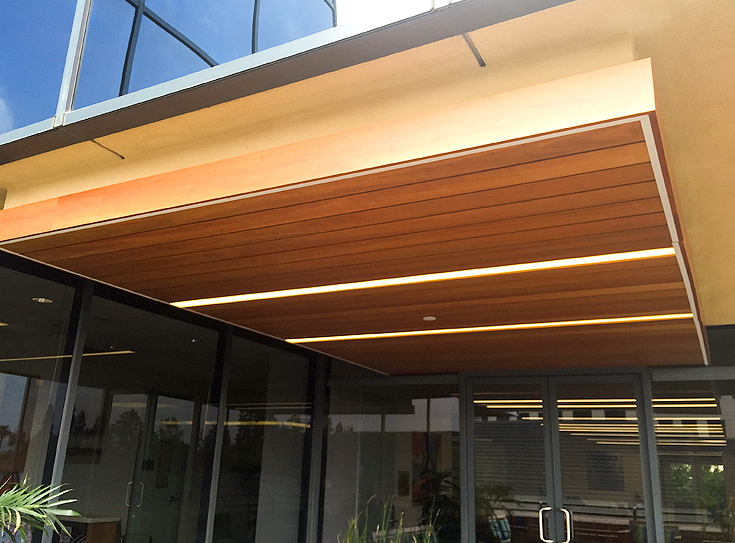

Linear Wood Outdoors
Entry way at an Orange County, CA medical center

Finishes

Choose Class A fire-rated material in more than 200 attractive veneers or PS White Ash on fire-rated MDF in a variety of stain options. Solid Poplar is also available with a variety of stains.
